Discussion Starter · #1 · (Edited)
Hi guys. We’ve gotten a lot of questions about our Colorado/Canyon supercharger kits. We thought it’d be a good idea to put a little more information out there. This isn’t intended to be terribly technical, but it should give some insight into our design decisions.

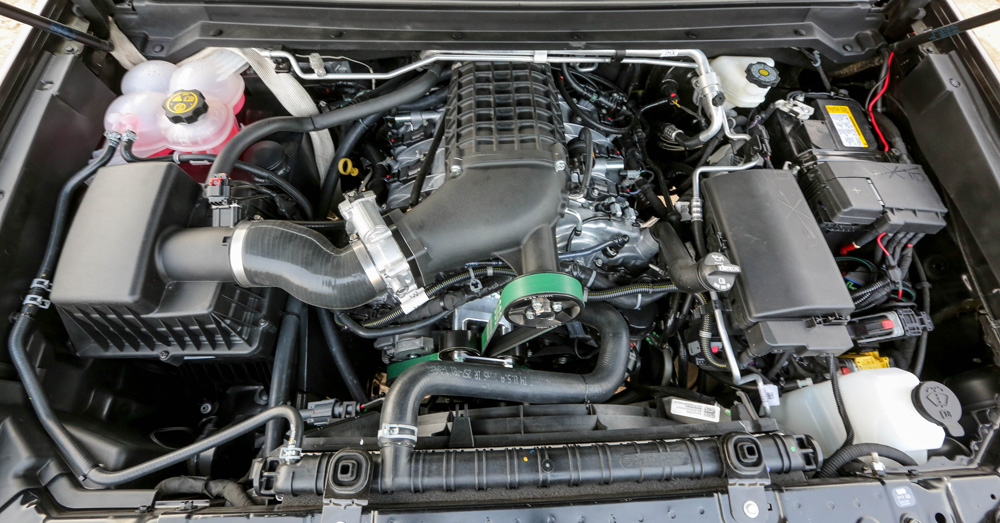

Anyway, let’s get to it. What’s the main difference between our kit and the competition? The blower itself. We use an Eaton TVS blower. Here it is…


Doesn’t look like your typical blower… because it’s not. Your typical centrifugal blowers take too long to spool up… They just don’t make the power down low. In fact, centrifugal setups often make less power than stock at low RPM because it takes power to drive them, even when they’re not generating boost.

The TVS blower works in a completely different way. It works like an air pump, not a fan. It builds boost as fast as the throttle blade opens on these trucks. That means zero lag. It also has a much wider operating range, so you’re not just making power at 4000+rpm, you’re making it at idle. You push the pedal, you have the power. 300 horses to the rear wheels at 2700rpm. You won’t get that from any other blower.

Our TVS blowers also run at a lower internal speed and have a bypass valve, so they take less power to drive and can essentially be “disconnected” when you’re not on the throttle (it takes approximately one horsepower to drive the blower when it’s bypassed). The increased low-end torque and decreased parasitic loss is the reason we gained miles per gallon in our CARB testing.

When we looked at the way the transmission shifts, the way these trucks are used, and the overall driving experience, the TVS blower was the only option.

Get in touch here, through the website, or by phone with questions. I may do some more "insightful" posts here... It's just a way to do a little rambling and explain why we do what we do.


·
Site Sponsor
Joined
·
477 Posts
Discussion Starter · #2 · (Edited)
OK a little follow-up… We were just looking at this in the shop. Thought some people would be interested. This is our kit (green) vs a centrifugal blower (blue) vs stock (red). We drew the centrifugal data by hand to illustrate the differences. Again, I don’t want to get too technical here. Just illustrating some points.


First let’s look at the stock curves for reference. You know how your stock truck feels, how it shifts, etc. You probably drive around all day between 1200 and 3500rpm. Maybe sometimes you confuse the transmission and it struggles to find the gear you want. Keep your driving in mind as we look at the other curves.

Now let’s look at our curve (green). The torque curve jumps from zero to 275lb-ft between 2000 and 2250rpm. That’s how long it took the throttle blade to go from zero to 100% after the operator stabbed the pedal. From there, the torque curve is pretty flat. We hit 300lbft at 2700rpm. 310 at 4000. Maxed out at 5000rpm. The point is that our blower makes a lot more torque than stock at all times. It really helps the transmission as well, since you’ve got enough torque to GO even if it’s in a taller gear than you’d like. It has the torque, so it doesn’t have to shift and rev to get there.

By contrast, the centrifugal curve (blue) doesn’t make torque down low. 3000 to 3500rpm is pretty flat. It looks like the operator is rolling into the pedal. Looks like the throttle blade hits 100% at 3500rpm. Torque then climbs linearly from 3500 to 4000rpm. That’s the centrifugal lag we talked about before. Compare to the stock curve. It’s making less torque than stock. 300lbft of torque doesn’t come until well past 4000, almost 4500rpm. Torque and horsepower look good after that, but we were never concerned about the top end.

That’s the best explanation I can give in text. It’s all about low-end torque. You have to drive the truck to really understand it, but you can see pretty clearly where the gains are here.

www.mallettcars.com [email protected] 216-905-0029


·
Registered
Joined
·
2,011 Posts
That torque curve is beautifully stout, nice smooth hp curve too. Gotta be really fun to drive a truck with the kit installed.


·
Registered
Joined
·
285 Posts
A Dmax with 361 horsepower >:)

The diesel engine option is 3.7K, plus it only comes in uplevel trims, adding enough overall cost to approach the cost of the
supercharger kit. In my demented brain, this equation is a potential option...

Less blingy truck/V6 + Mallett kit = Win :grin2:
I like the Mallet SC setup. If I were going to go w/ a gas truck and modify it, that would be an option. For me, I am just not into that sort of thing these days. It's funny that when I was younger and couldn't afford it, I would have killed for something like that on a vehicle. But when I'm older and can afford it, I'm just not that interested in doing it. I do like the idea of it though!
