Update for 2020 - Yes, still making these for X-cab owners around the country. The new ZR-2 has been popular with the extended cab - evidently it's the only way you can get a x-cab with a diesel. In any case, this platform has become even more popular - the inside configuration and dimensions remains the same going back to 2015.

For taller drivers we notch the top back behind the seat, and for the passenger side as well if desired. There are pics of this along about page 5-6 or so. If you're interested in getting one just let me know your height and pants length and I'll size the top accordingly.

Cost for a finished platform is $185, plus UPS Ground Residential shipping is $35 - Total $225. If you have a commercial address to ship to, like your office warehouse or plant, there may be some savings, depending on your locale - just let me know with your inquiry.

Thanks for all the interest! PM for more details.

**
Now to the original story from early 2015....

Well, we had a lengthy discussion, the wife and I on cab configuration when we were shopping. The crew-cab 4-door is a really nice layout, but for me the bed was way too short for hauling motorbikes and there was no way I was buying the long wheelbase truck as a 4x4. So it kind of got down to the point where it was a go or no-go on even getting a truck as it had to be the extended cab. She looked at the back seats and said no way is this going to work, I can't even fit in there. I told her to think of it as a 2-seater with space for the dogs. We've had pickup trucks going back more than 40 years and a truck seat used to seat 3 in a pinch and that was all there ever was. We just won't have any passengers, or maybe just one in a pinch. The extended cab is really too small for an adult anyway. They'll have to bring their own car, or we'll take two.

So once we settled that, then there was the dogs - our 3 Pomeranians (no we didn't CHOOSE to have 3 dogs - we inherited the third LOL), they are 8-12lbs so there's plenty of space for them and one usually rides on a lap. But that back seat configuration doesn't work for dogs. There's the cup holders and the cubby for seat belts to sit in. And the seat bases are really short with a big gap behind the front seats. Even hauling groceries and such is a PITA with the way it is as built.

I got to looking at it and thought the seat cushions are easily removed - there is a bolt on each side that also holds the seatbelts. And the backs are similarly easily removed. But now we have those two stupid little plastic storage bins and the cubby and drink holder in the middle. My thought was to build a platform in place of the seat bases. But then there would be no way to ever use the seats even if you really wanted to. I wanted to keep that option if possible should the need arise.

Next idea was to build a plywood platform that sits above the seat pads and leave everything the factory put in there intact. This also preserves the two storage bins, granted they're small, but at least you can throw some emergency things and stuff like that in them.

I got a basic design going in my head and some measurements and walked thru my local Lowe's home center store for some supplies. Here is my parts list:

Half sheet of 1/2" birch-faced cabinet plywood - $25
3M spray adhesive for carpet - $9
A 4' Piano hinge - $10
Pack of #8x1/14" wood screws - $1.25
One 8' stick of 1x2 milled pine wood strip - $5

I had a bottle of wood glue, and I have all kinds of woodworking tools. I have built cabinets and boats and houses and such. Definitely makes it easy when you have what you need on hand.

Lowe's didn't have any carpeting that looked automotive, and no black, so I went down the street to Pep Boys auto parts and got a 3x6' piece of black auto carpet. $15

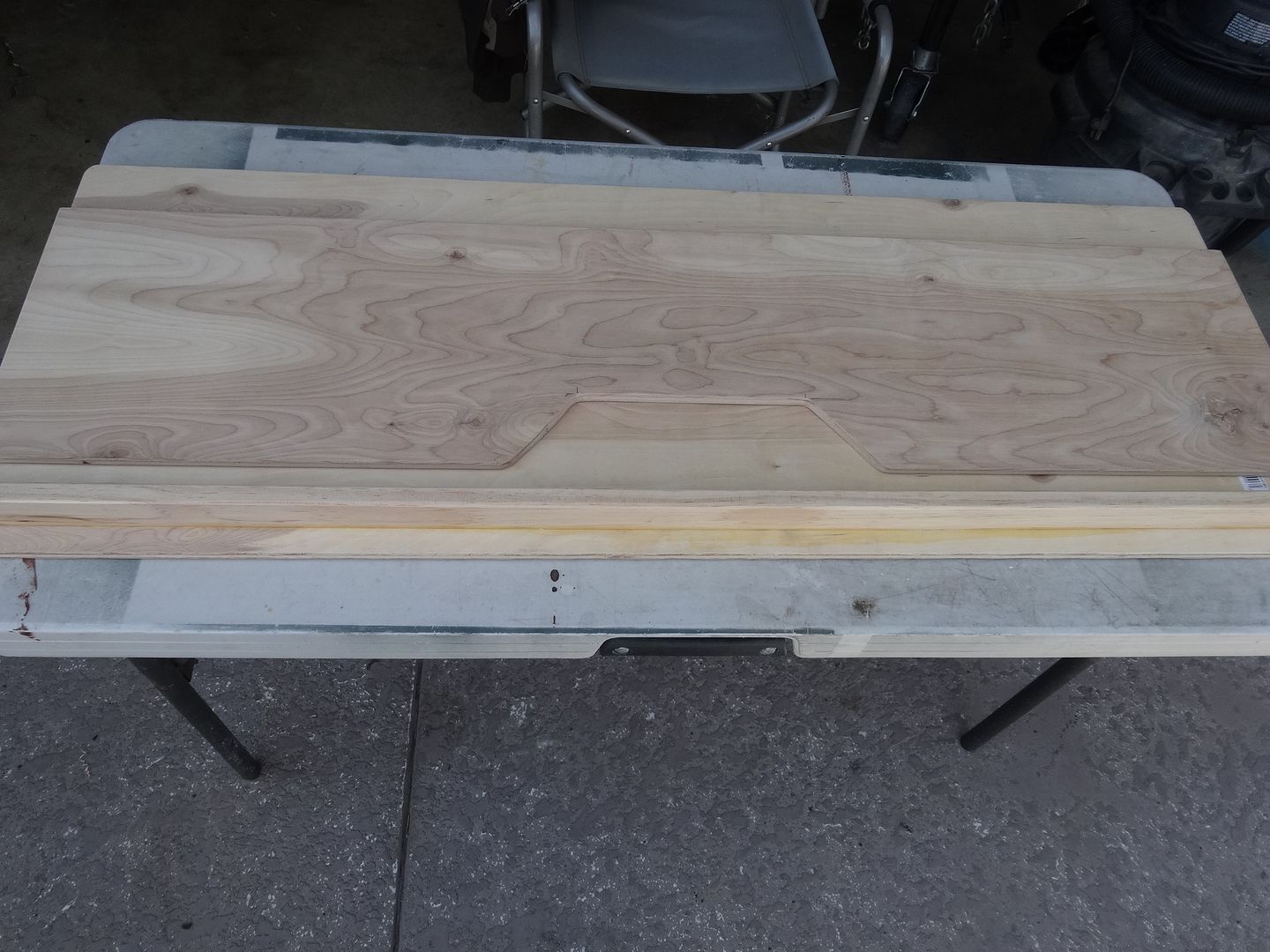

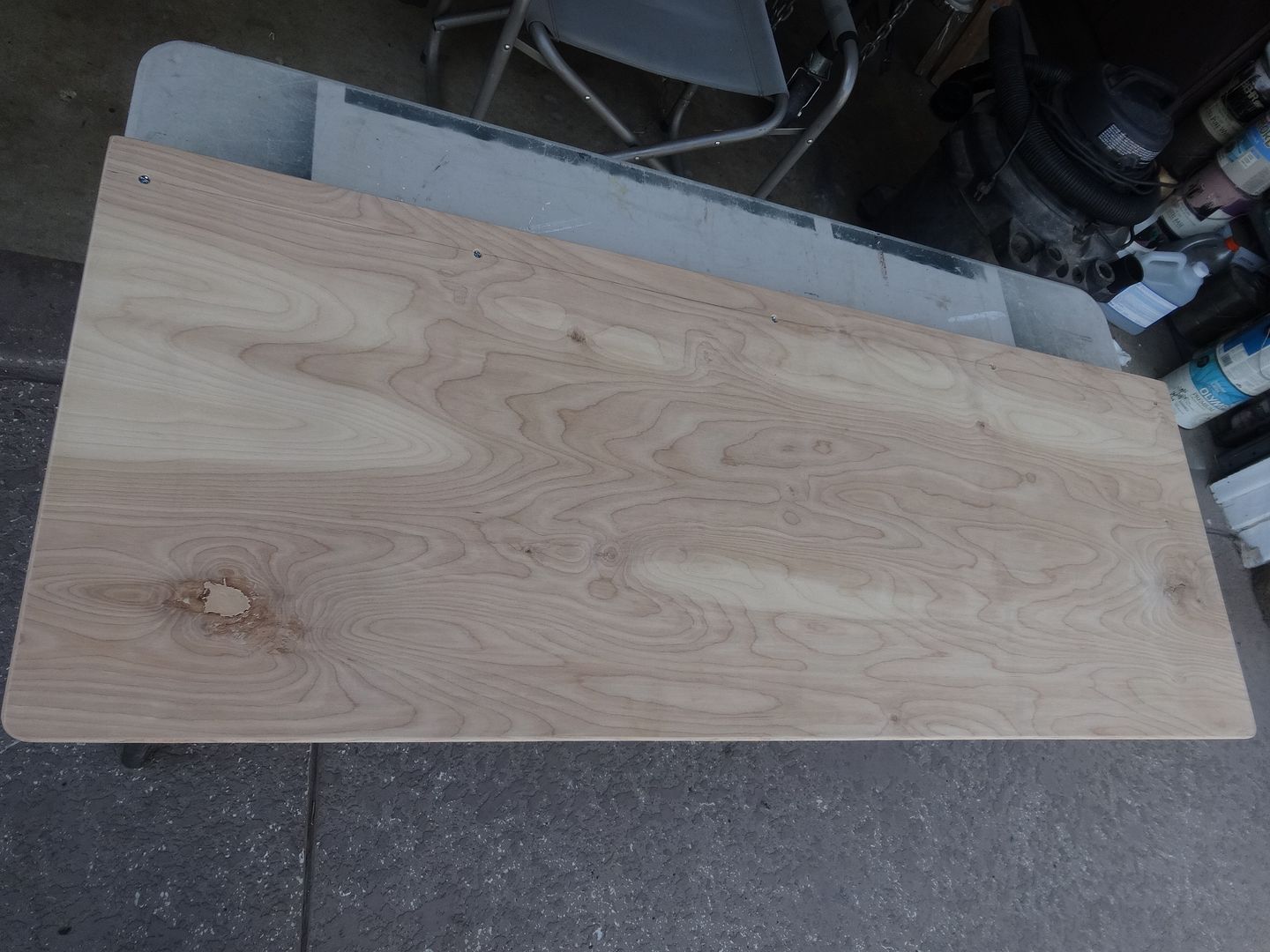

First step was to cut the top to size. Fortunately the width from side to side is perfect at 4'. Front to back is 18" from the center console to the jack cover. Easy. Next was to get a feel for height and level - I matched the levelness to the box so when the truck is level the platform will be level.

Birch-faced cabinet plywood is really nice to work with. It mills easy and is perfectly flat and square. Cost is about 20% more than plain fir CDX but so much nicer to build with. CDX or even AC panels are common plywood, like you put on the sides or roof of your house or floor. But it always has some twist 'till you nail it down. Plus it picks up moisture quickly and warps, not what I wanted to deal with for this project. I didn't want OSB or particle board either - and wanted to keep it lightweight.
Weight is about 34lbs for a full sheet, so there's about 12lbs of material here, plus the 1x2 pine strip. Very easy to handle for installing and removing the finished platform.

It turns out that the seatbelt retractors make a perfect support for the back at the height of a 1x2.






Next I break out my cabinet tools, countersink bits and glue and screw the back support to the platform top. I set it back from the edge about an inch so it rides square on the seatbelt caps without digging into them. Carpet will add a lot of cushion to everywhere the assembly touches the truck.




Took a bevel from the floor to the driveline hump, centered it, and cut out the front of the platform support. I used a 3/4" radius to the lower edges, the hump cut out, and the front of the platform top. Then rounded over all the exposed edges with a wood plane.









Next I can trial fit everything and figure out where the piano hinge is going to go. By setting it back against the bins and with the floor hump cut out, the whole thing locks into place. It cannot move forward or back, or left or right, it fits perfectly into the space.






I'm going to break this into a couple of posts so it doesn't get so long...


·
Registered
Joined
·
969 Posts
Discussion Starter #2 (Edited)

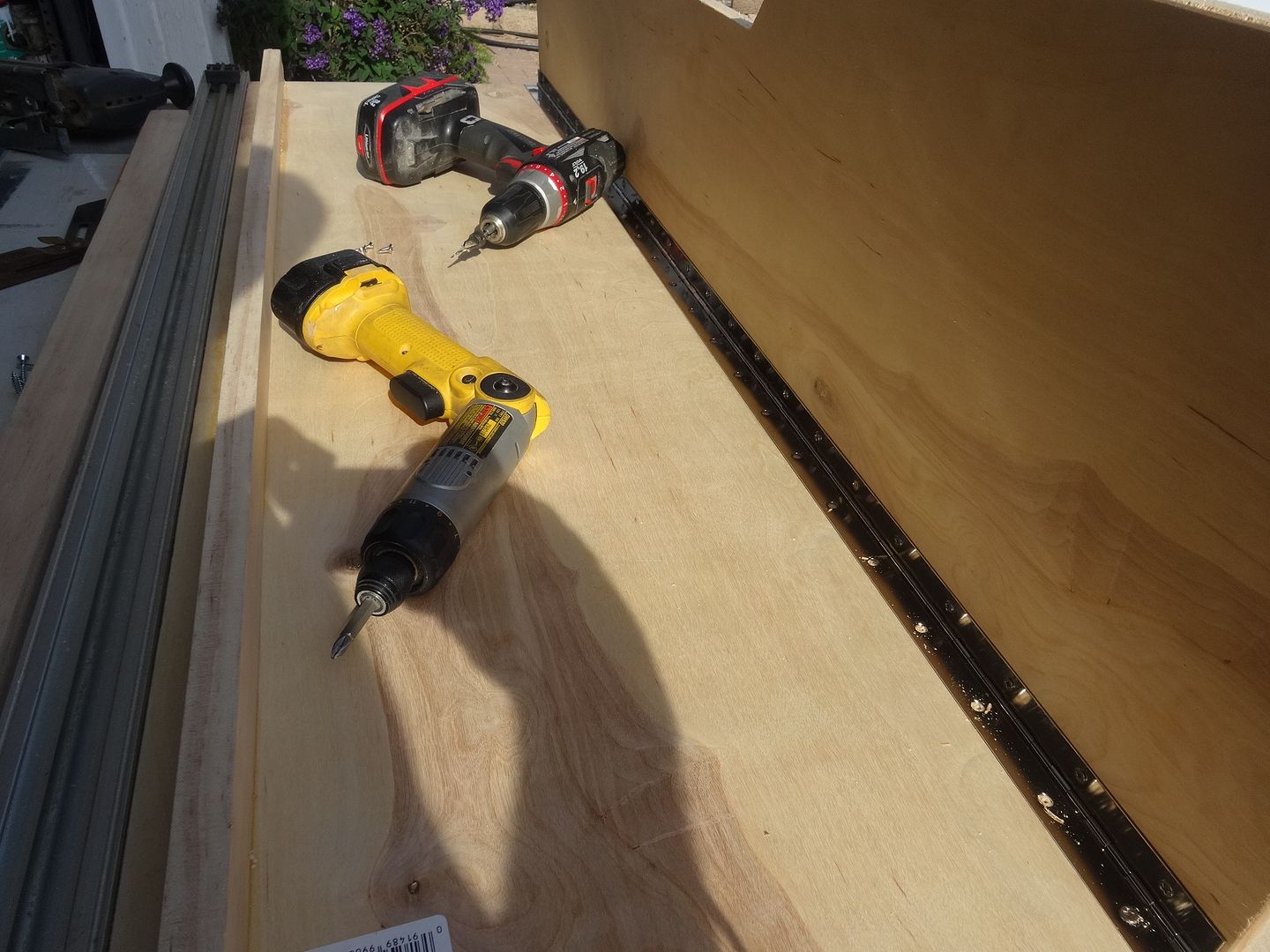

Since the piano hinge comes in a 4' length no cutting required, just a few dozen little screws. A power driver is the way to go here. I like to drill a tapered pilot hole, the screws start and drive easier and no wood splitting. Just don't drive them too hard or they strip. Piano hinge comes in brass or chrome finish - same price.

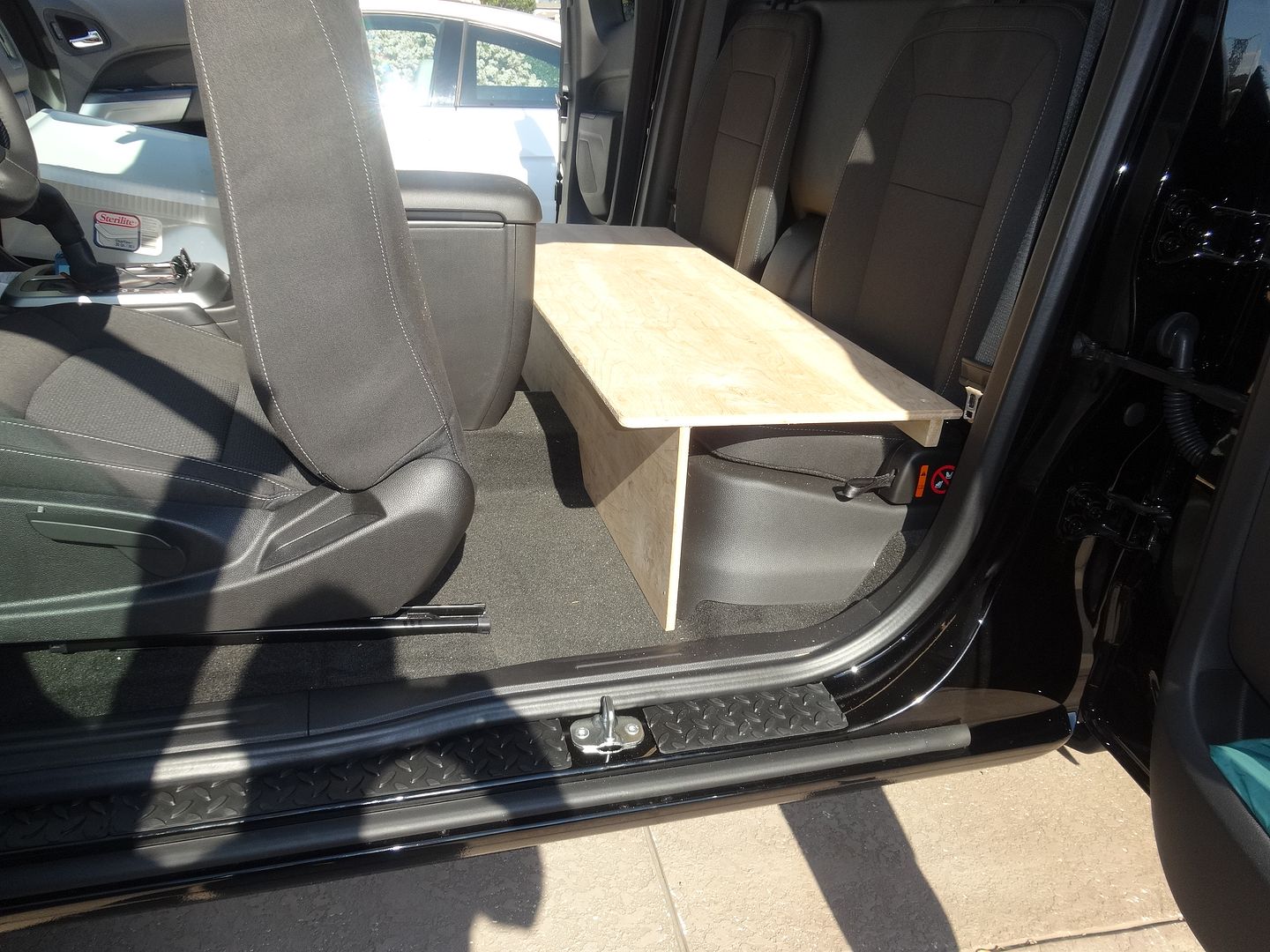

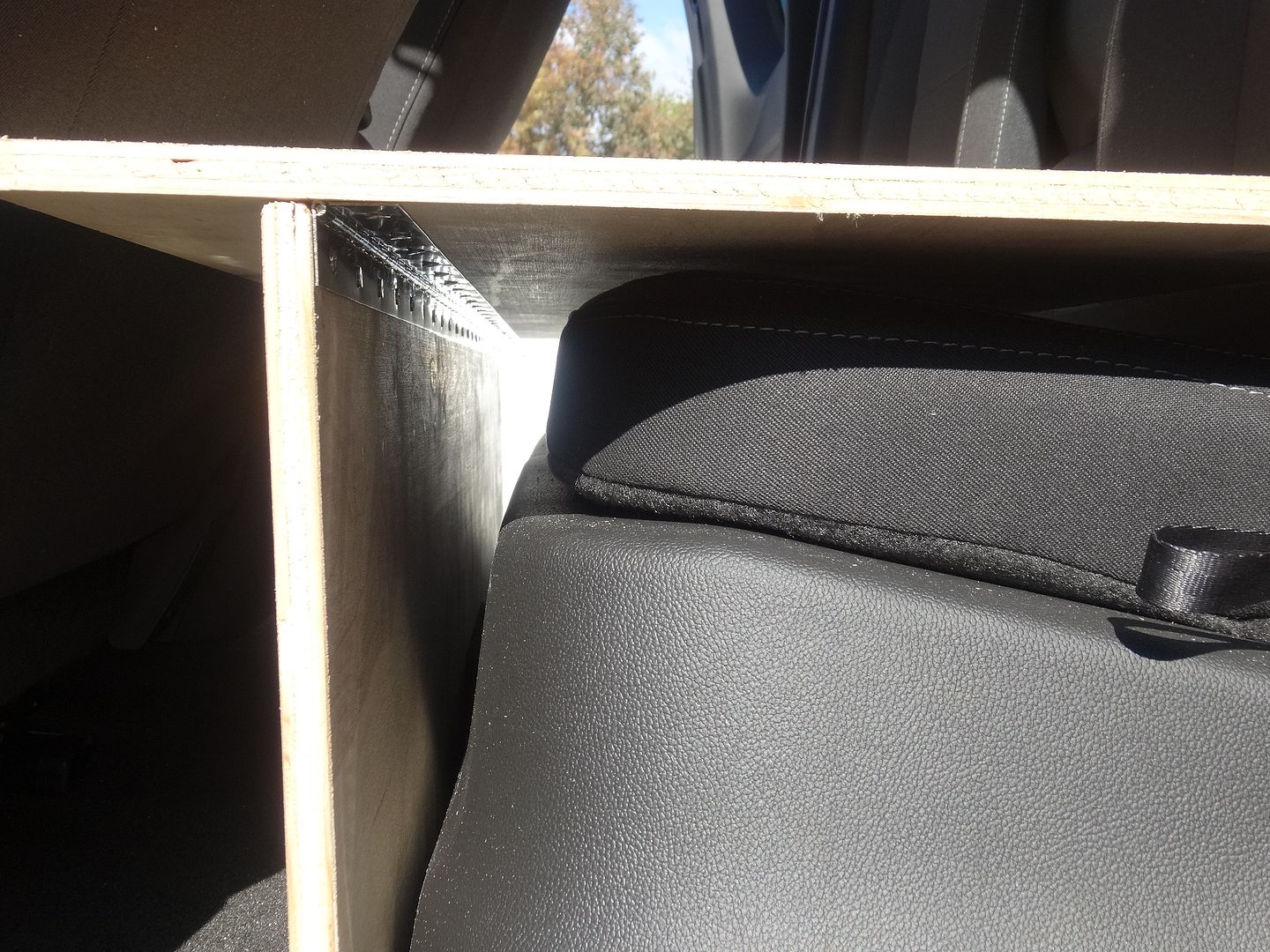

With everything assembled I can now check all my clearances. It clears the rear seat pads on top by about a quarter inch. There's quite a bit of cushion on the backs of the front seats so they will slide pretty much all they way back in the tracks. I'm 5-10" with 31" inseam and with my seat adjusted for normal driving there's about an inch between the platform and the back of the seat, more if you squish the back of the seat - there's quite a bit of give to the back of the seat. And there's room to move further back for a taller driver, or to recline about halfway. In a pinch I would move the seat base up a couple of cogs and then I can get the seat to recline about 60%.

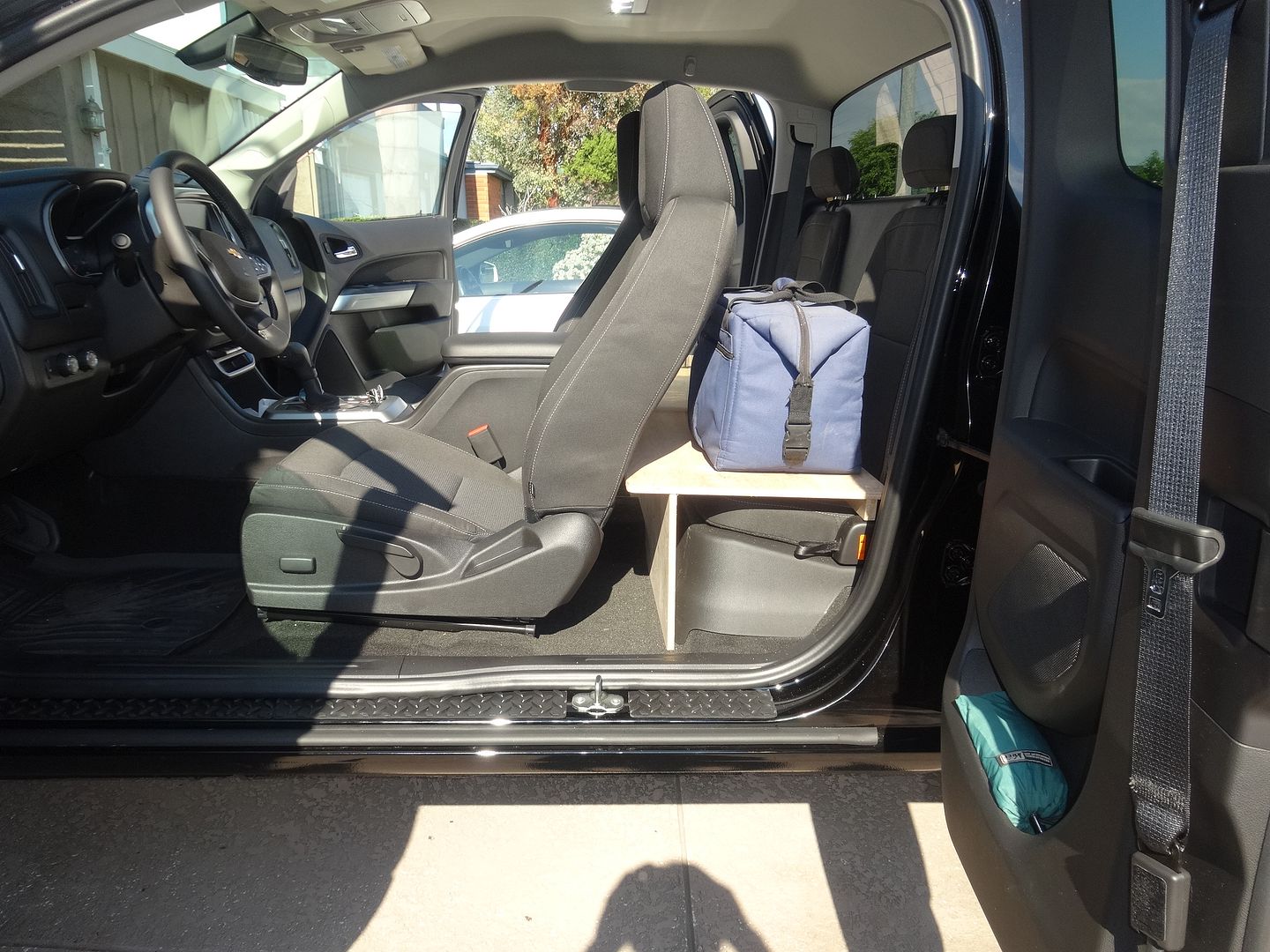

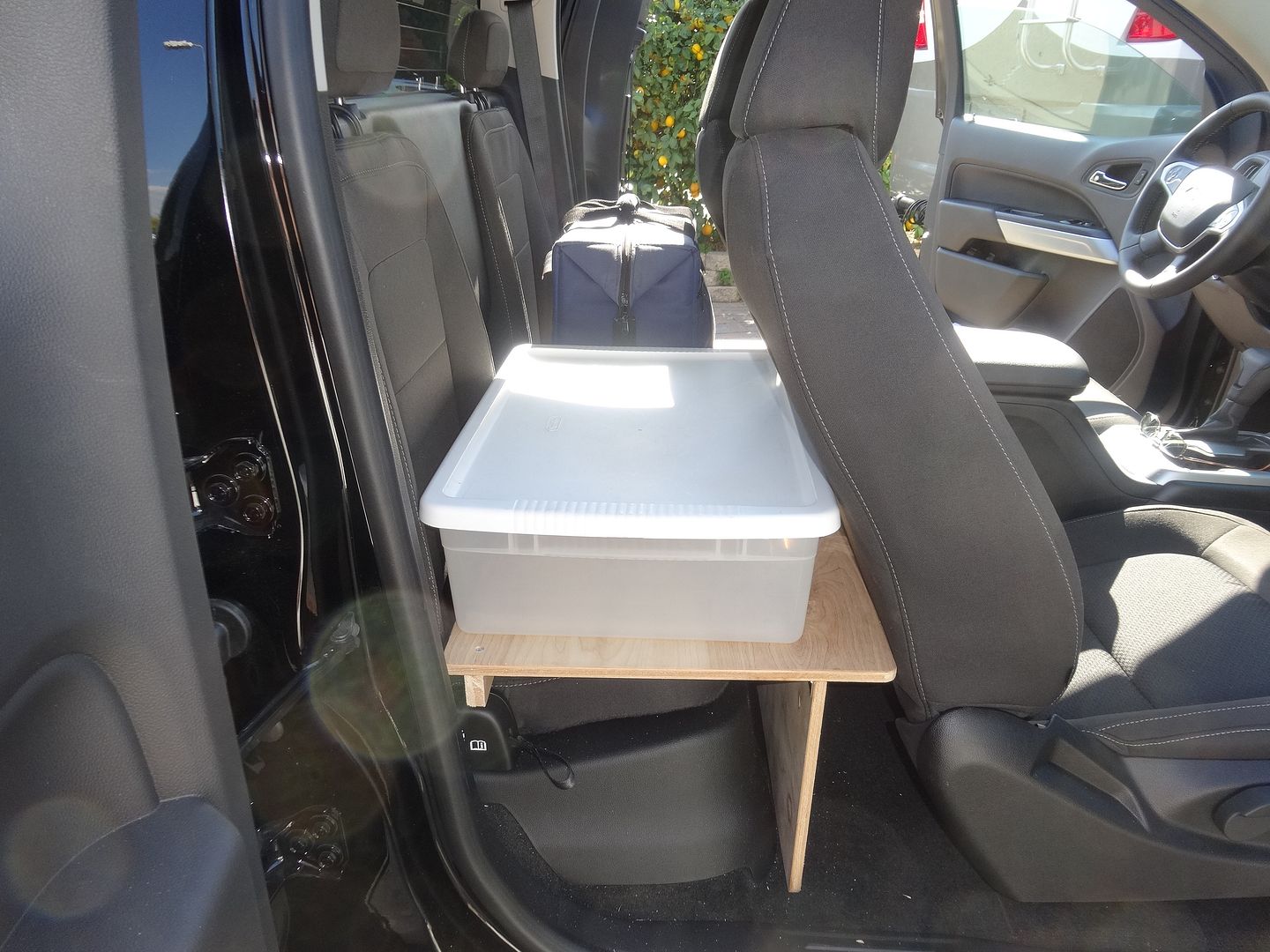

Tested it out with a couple of common cargo pieces as well. At 18" wide it's perfect for grocery bags, boxes, a cooler. I even had a plastic storage bin hanging around that fits perfectly in there.

Since the rear cross support sits on the seat retractor housings I figure 40lbs max is a good bet. Too much weight and it would crush those plastic housings. I popped one off and there is good webbing internally that sits on the metal part of the seatbelt mechanism, they are plenty strong. Nice design here from GM.

Again though, I would limit weight on this setup. For us, it's grocery bags, some gear, or the little dogs. Would hold any dog that would fit inside this compartment - after all it is just 6 square feet - 18" by 48".






And finally, if we need to use the seats it folds flat and can be tossed into the box or left in the garage.
Sand it all smooth and prep for carpet covering.



Smooth top ready for covering. I rounded over the edges well so it wouldn't cut into the front seat backs even if they get mashed down against them.




Finishing it up on the next post...


·
Registered
Joined
·
969 Posts
Discussion Starter #3 (Edited)

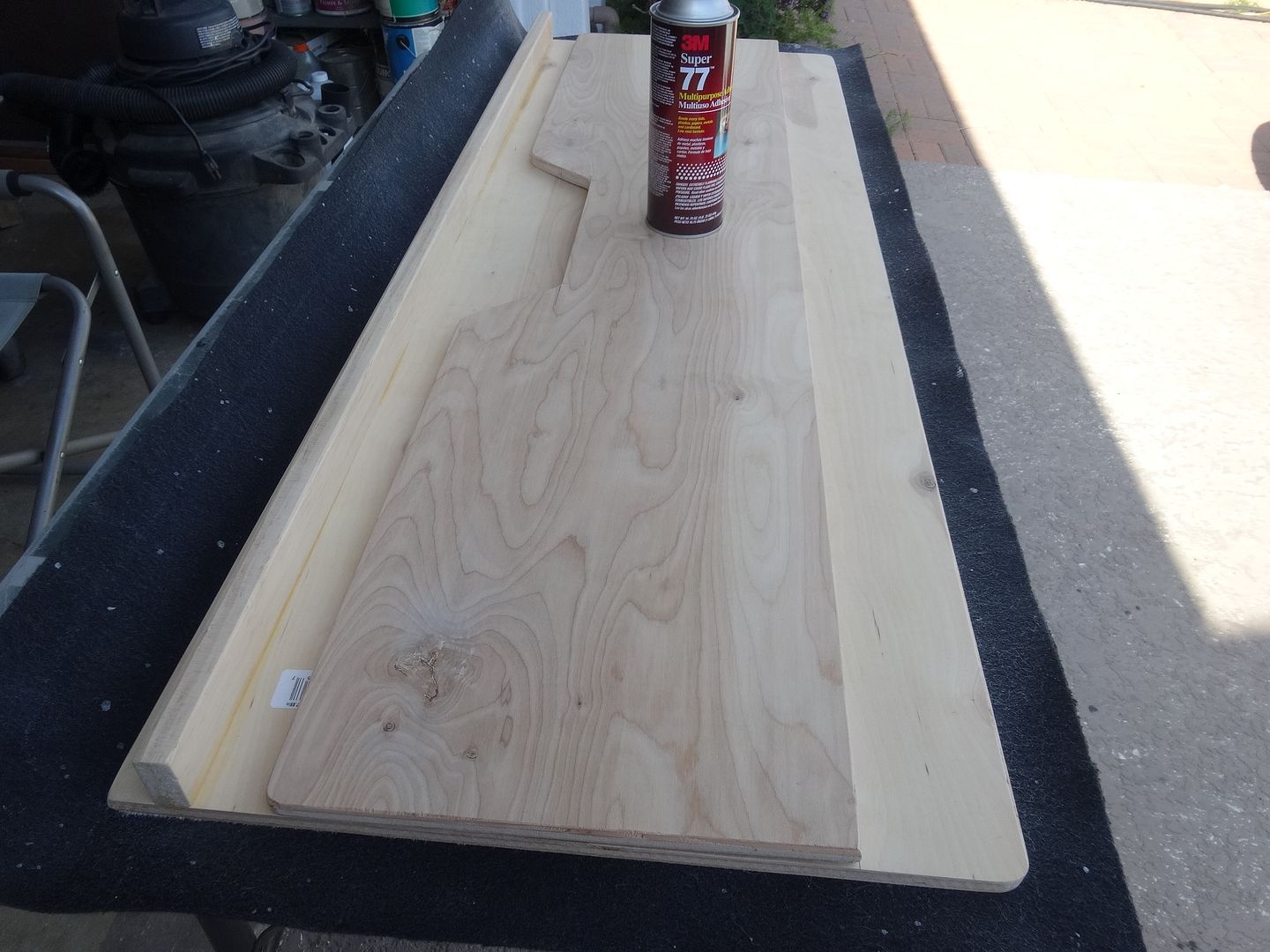

Covering it with automotive carpet is the last step. 3M Super 77 adhesive is really easy to work with and sticks like crazy. You do have some working time, but it sticks like contact cement.

Left a margin all the way around so I could wrap it around the platform edges and rear support, put a 1/4" staple every few inches. It could also be upholstered in the say way. For me the carpeted top is perfect. Makes for a flat-floor of carpet like a SUV.

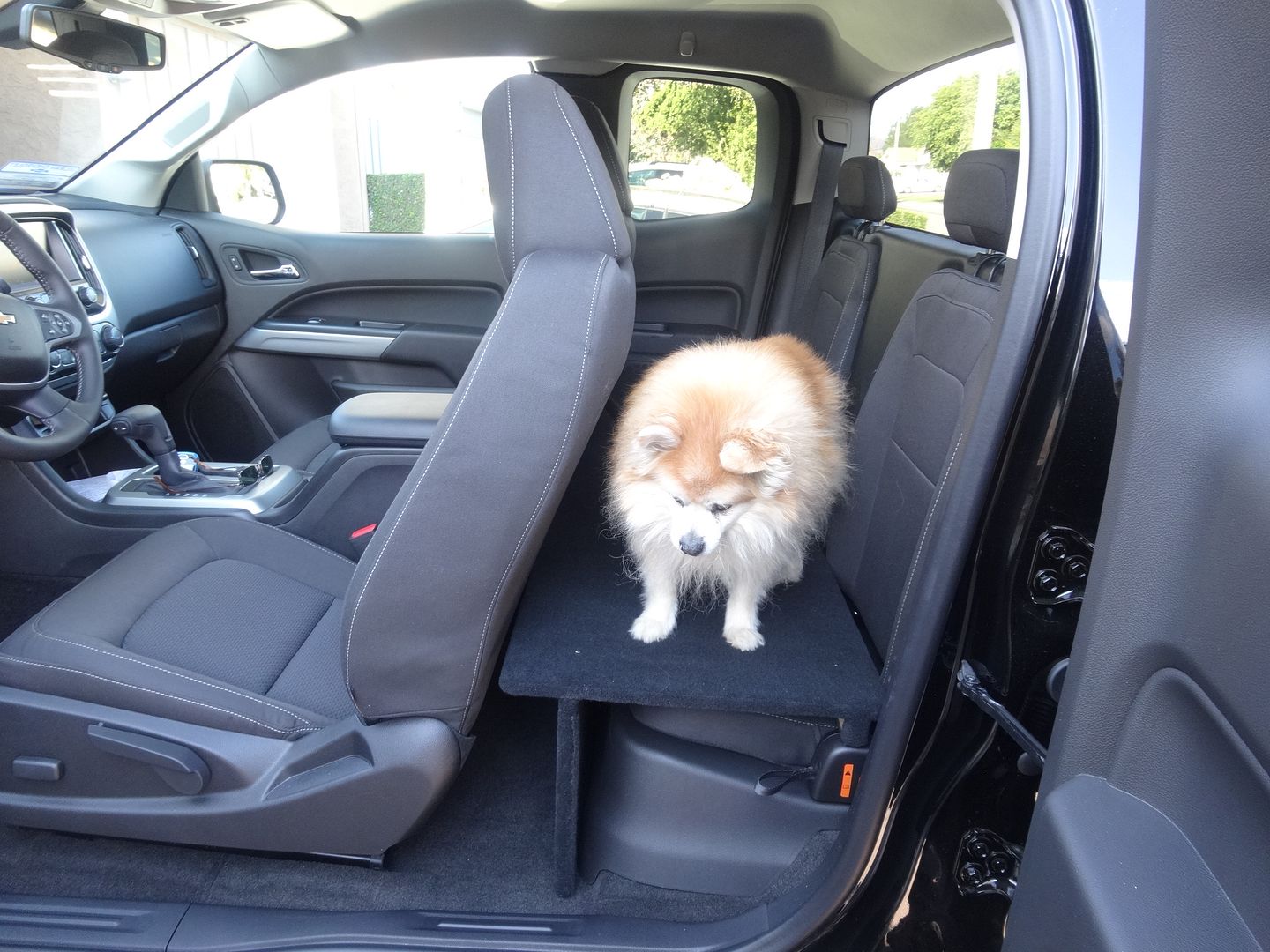

With the surfaces carpeted over it's ready to install and test out with the doggies. My next project will be to make a fabric dog bed with a raised edge roll all the way around. That will cover all the little openings at the edges and hold the dog hair. When the dogs get out the bed can be removed along with all their hair. What a PITA! :lol:





Wifey thinks it's all good. :p

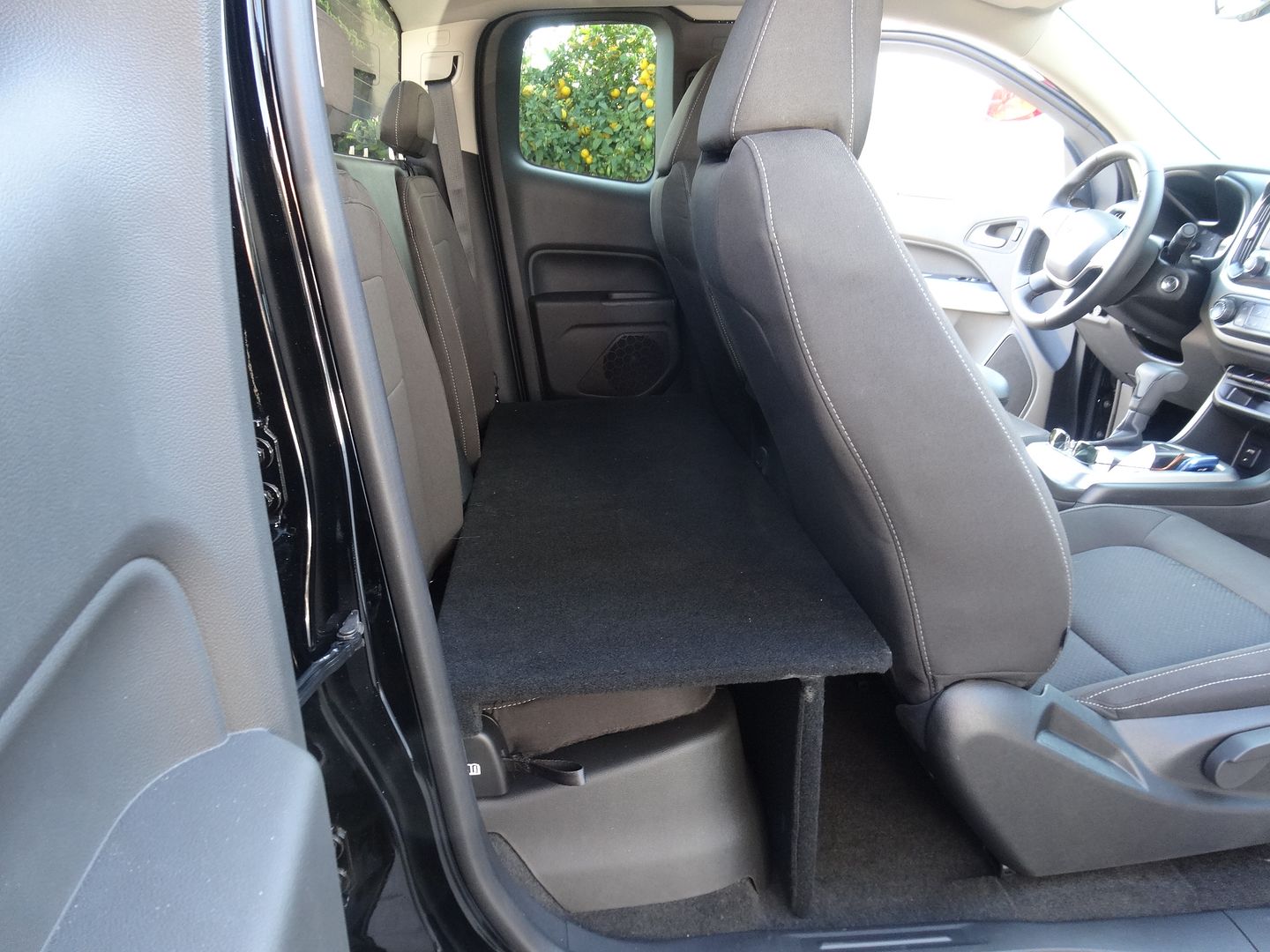

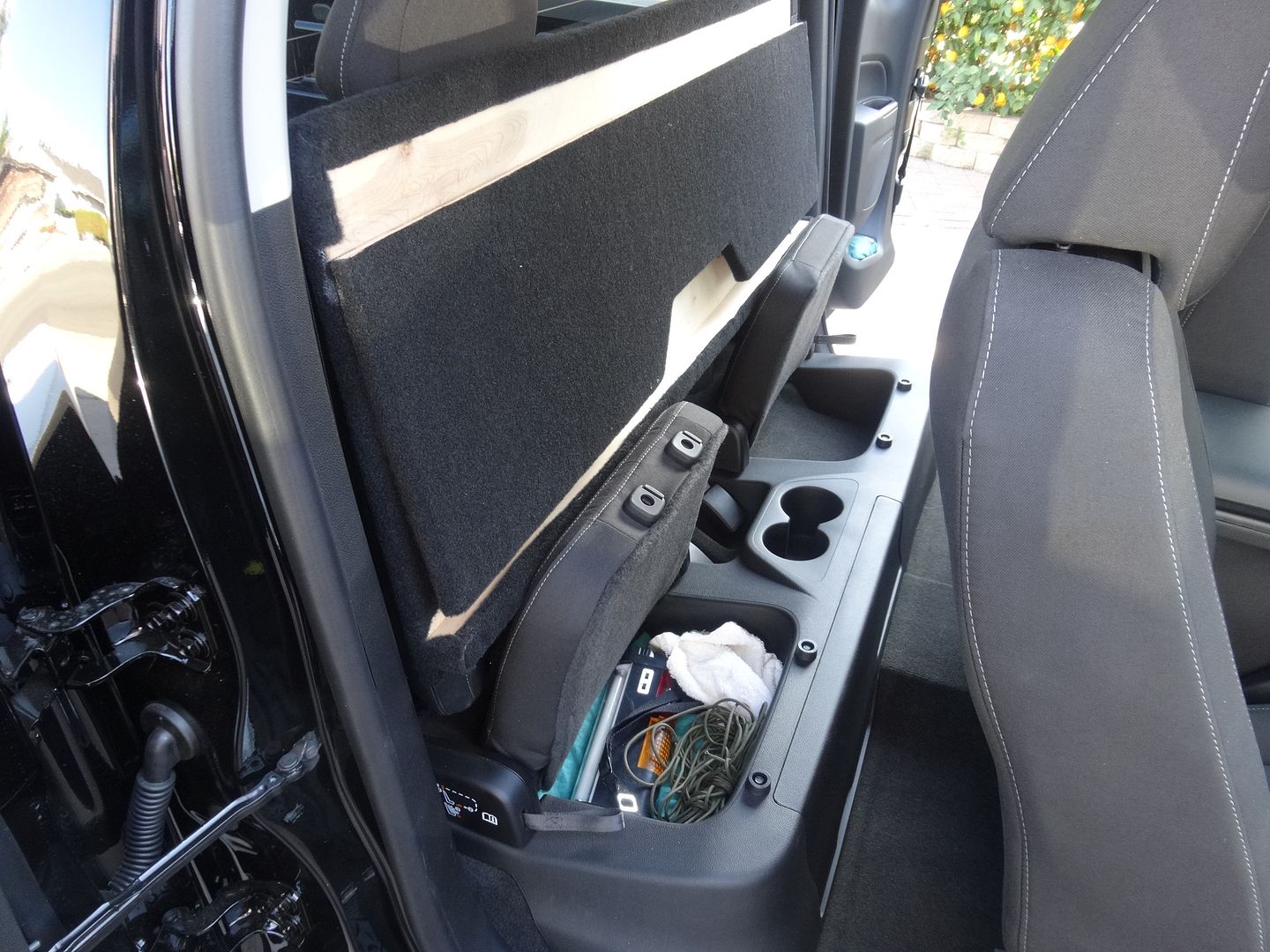

The whole thing is easy to flip up to gain access to the storage bins below.

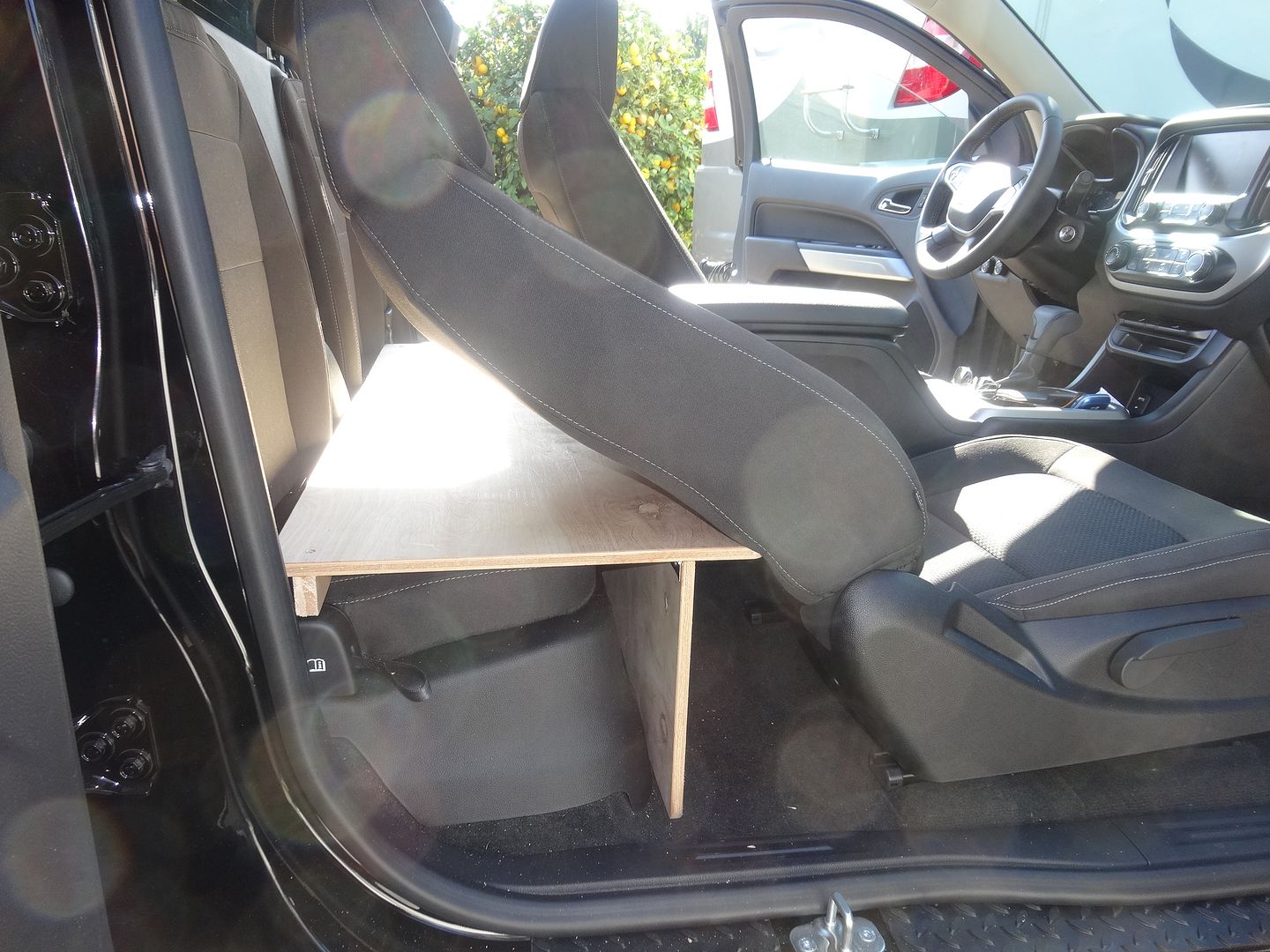

One side, or both. Just flip the seat forward so there's room to raise it up.

The half inch plywood is plenty light and plenty strong - no bowing at all with weight on it. It's very solid.

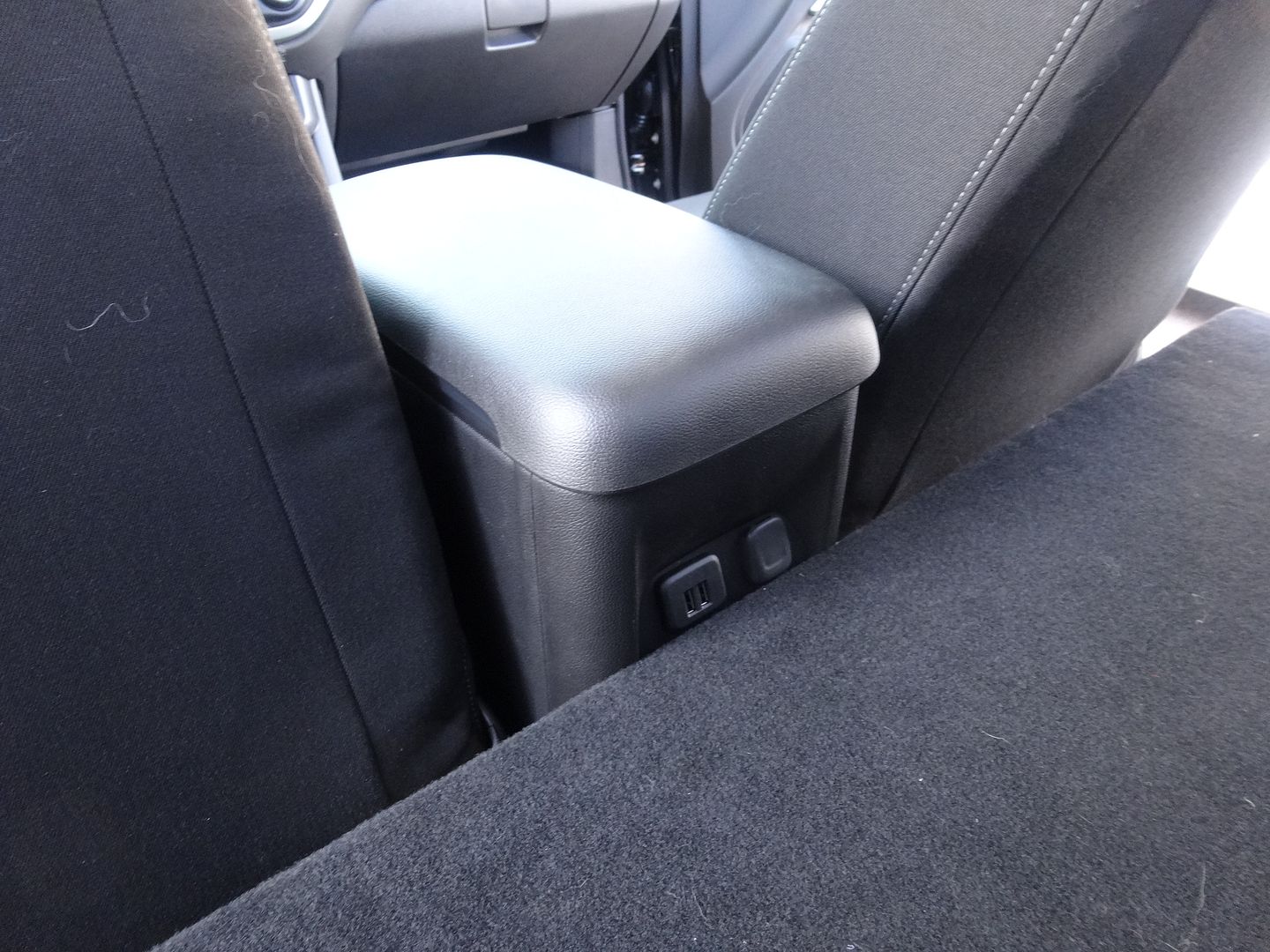

There's still room to get to the USB ports for charging, and cigar lighter plug, in the back of the center console.




And there's room for cargo under the front seats in front of the platform base. Yes, you would have to remove your cargo and raise it up to get to the jack and tools.



Still plenty of room to recline or to move the driver seat back. If you're over 6-2 or 3 I would make sure the seat can slide all the way to the rear of the track. I think I have a cog or two more to go. As I mentioned, in my normal position there's about an extra two inches of room behind the seat. Plenty of room for the passenger seat too, even for reclining.






Thanks for reading along...hope you enjoyed this little project. Build time was about 3-4 hours. I'll bet I could make one again in about half the time. There was a lot of measuring and trial fitting and figuring out how everything would work.

I can tell you we will get a LOT of use out of it. The space is much more usable. Now I am totally in love with extended cab Colorado!
Maybe it would work for you too.

::chevy::


·
